Infrared Thermography: Non-Invasive Thermal Analysis
Overview
Infrared thermography, also known as infrared thermal imaging, is a technology that has revolutionized the way we perceive and measure temperature. Originally developed for military applications, this technology has found its way into various fields, from industrial maintenance to medical diagnostics. In this comprehensive article by Academic Block, we will explore the principles behind infrared thermography, explore its diverse applications, and discuss recent advancements that continue to enhance its capabilities.
Principles of Infrared Thermography
A. Basics of Infrared Radiation
Infrared thermography relies on the detection of infrared radiation emitted by an object. All objects with a temperature above absolute zero emit infrared radiation, and this radiation is directly related to the object's temperature. Understanding the basics of infrared radiation is crucial for grasping the principles of thermography.
-
Blackbody Radiation: Objects that absorb all incident radiation and emit the maximum possible amount are known as blackbodies. The radiation emitted by blackbodies follows Planck's law, providing a theoretical foundation for understanding the relationship between temperature and infrared radiation.
-
Emissivity: Emissivity is a property of materials that determines how efficiently they emit infrared radiation. It ranges from 0 to 1, with a value of 1 indicating a perfect emitter (blackbody). Understanding emissivity is essential for accurate temperature measurements using infrared thermography.
B. Infrared Cameras and Detectors
-
Sensor Technology: Infrared cameras use sensors, typically microbolometers, to detect infrared radiation. These sensors undergo changes in electrical resistance when exposed to temperature variations, allowing the camera to convert these changes into a visual representation of temperature differences.
-
Spectral Range: Infrared cameras operate within specific spectral ranges. The choice of spectral range depends on the intended applications, as different materials emit and absorb infrared radiation differently across the spectrum.
Applications of Infrared Thermography
A. Industrial Inspections and Maintenance
-

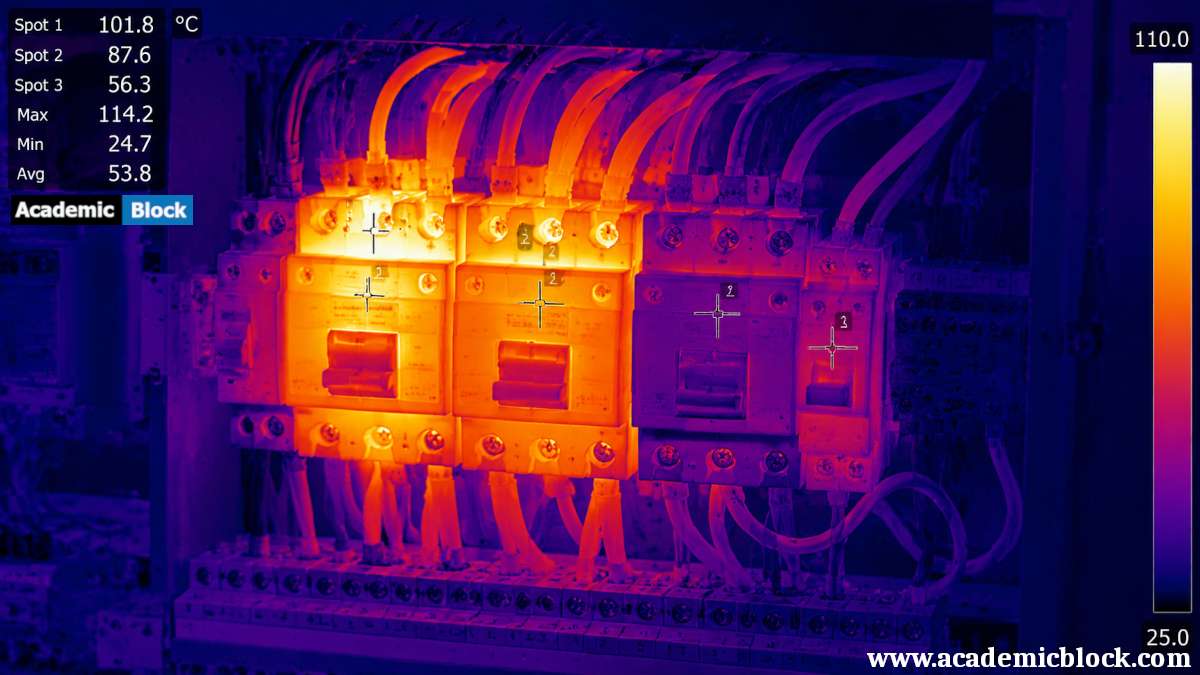

Electrical Systems: Infrared thermography is widely used for inspecting electrical components. The technology can identify overheating connections, faulty wiring, and potential fire hazards, allowing for preventive maintenance and minimizing downtime.
-

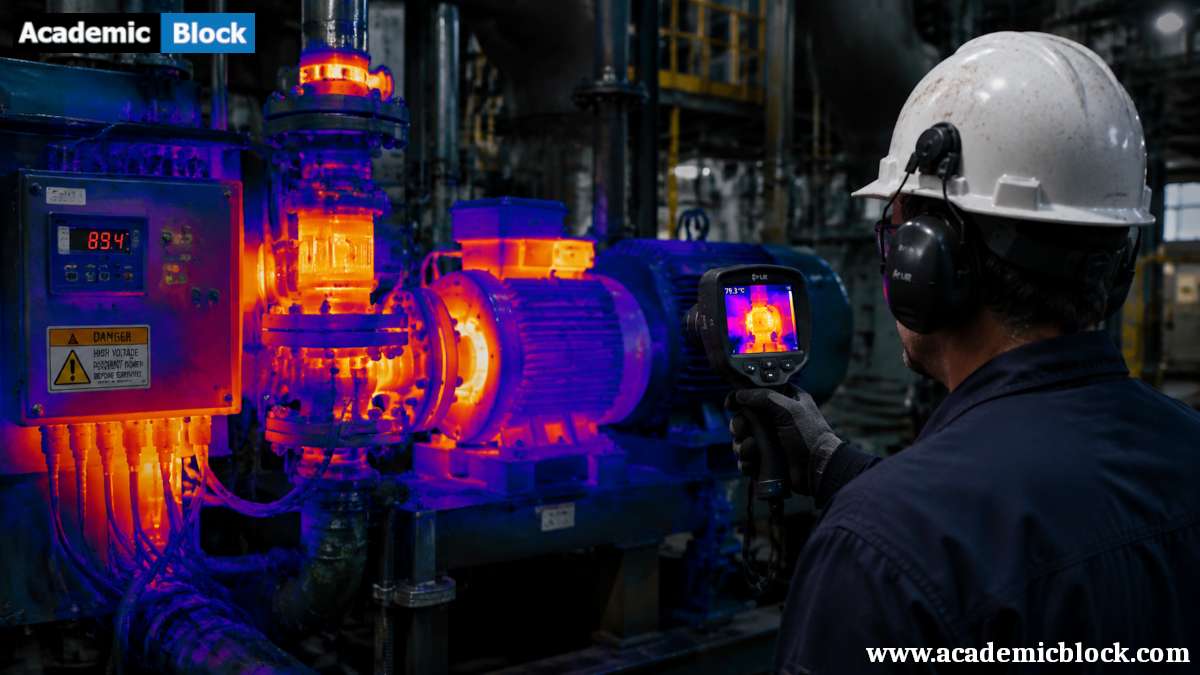

Mechanical Systems: In the realm of mechanical systems, thermography aids in detecting issues such as bearing failures, misalignments, and lubrication problems. This proactive approach to maintenance enhances equipment reliability and longevity.
B. Building Inspections and Energy Audits
-
Insulation Deficiencies: Infrared thermography is invaluable for identifying insulation gaps and deficiencies in buildings. By detecting temperature variations on surfaces, inspectors can pinpoint areas with inadequate insulation, leading to improved energy efficiency.
-
Moisture Detection: Water intrusion in buildings can lead to serious structural issues and mold growth. Infrared thermography excels at locating moisture sources by detecting temperature variations associated with wet areas.
C. Medical Diagnostics
-
Breast Cancer Screening: In the field of medicine, thermography is used for breast cancer screening. The technology detects temperature differences in breast tissue, potentially indicating abnormal blood vessel patterns associated with early stages of cancer.
-
Inflammatory Conditions: Infrared thermography is also employed to assess inflammation and circulatory disorders. By capturing thermal images of affected areas, healthcare professionals can diagnose conditions such as arthritis and vascular diseases.
Mathematical equations behind the Infrared Thermography
In infrared thermography, the mathematical equations involve principles from heat transfer, radiative transfer, and the physics of electromagnetic radiation. Several key equations are used to interpret and analyze thermal images. Here are some fundamental equations related to infrared thermography:
Planck's Law:
Planck's law describes the spectral radiance of a blackbody at a given temperature and wavelength. It is expressed as:
B(λ,T) = (2hc2 / λ5 ) [ 1 / ( ehc / λkT −1 ) ] ;
where:
-
-
B(λ,T) is the spectral radiance,
-
λ is the wavelength of radiation,
-
T is the absolute temperature of the blackbody,
-
h is Planck's constant,
-
c is the speed of light, and
-
k is the Boltzmann constant.
-
Stefan-Boltzmann Law:
The Stefan-Boltzmann law describes the total power radiated by a blackbody per unit surface area. It is given by:
P = σ A T4 ;
where:
-
-
P is the total power radiated,
-
σ is the Stefan-Boltzmann constant (5.67×10−8 W m−2 K−4),
-
A is the surface area, and
-
T is the absolute temperature.
-
Emissivity Equation:
Emissivity (ε) is the measure of an object's ability to emit infrared radiation. The relationship between emissivity, reflectivity (ρ), and transmissivity (τ) is given by:
ε + ρ + τ = 1 ;
In many cases, emissivity is treated as a material property and is assigned a value between 0 and 1.
Radiative Transfer Equation:
The radiative transfer equation describes the transport of radiant energy in a medium and is a fundamental equation in radiative heat transfer. The equation can be complex and is often expressed in terms of specific conditions, but a simplified form is:
dIλ / ds = −ελ Iλ + ελ Bλ (T) ;
where:
-
-
Iλ is the spectral radiance,
-
Bλ(T) is the blackbody spectral radiance at temperature T,
-
ελ is the emissivity at wavelength λ, and
-
ds is the path length.
-
Inverse Square Law:
The intensity of radiant energy from a point source decreases with the square of the distance from the source. This is described by the inverse square law:
I2 = I1 / d2 ;
where:
-
-
I1 is the initial intensity,
-
I2 is the final intensity, and
-
d is the distance between the source and the point of interest.
-
These equations form the basis for understanding and interpreting thermal images in infrared thermography. Depending on the specific application and the characteristics of the materials involved, additional equations and models may be employed for more accurate analysis.
Advancements in Infrared Thermography
-
High-Resolution Imaging: Recent advancements have led to the development of infrared cameras with higher resolutions. This improvement enables users to capture more detailed thermal images, making it easier to detect subtle temperature variations and anomalies.
-
Integration with Artificial Intelligence: The integration of artificial intelligence (AI) in infrared thermography has opened new avenues for automated analysis and interpretation of thermal images. Machine learning algorithms can enhance the accuracy of temperature measurements and automate the identification of anomalies, streamlining inspection processes.
-
Portable and Handheld Devices: The miniaturization of infrared camera technology has resulted in the creation of portable and handheld devices. These compact tools provide flexibility in various applications, allowing users to conduct infrared thermography inspection in confined spaces or remote locations.
-
Multispectral Imaging: Advancements in sensor technology have enabled the development of multispectral infrared cameras. These cameras can capture thermal images in multiple spectral bands, providing additional information about material properties and enhancing the diagnostic capabilities of thermography.
Challenges and Considerations
-
Emissivity Variations: The accuracy of infrared thermography is influenced by variations in emissivity. Different materials have different emissivity values, and achieving precise temperature measurements requires accounting for these variations.
-
Environmental Factors: Environmental conditions, such as ambient temperature, humidity, and air movement, can affect thermal images. Understanding and compensating for these factors is essential for obtaining reliable results, especially in outdoor applications.
-
Training and Interpretation: Interpreting thermal images requires expertise, and the success of thermographic inspections depends on the operator's training and experience. Ongoing education and training programs are crucial for ensuring accurate and meaningful results.
Future Directions
-
Quantum Sensors: The exploration of quantum sensors for infrared thermography holds promise for further improving sensitivity and accuracy. Quantum sensors have the potential to revolutionize temperature measurements by leveraging quantum phenomena for enhanced detection capabilities.
-
Augmented Reality Integration: The integration of augmented reality (AR) with infrared thermography is an area of ongoing research. AR overlays thermal information onto the real-world view, providing users with a more intuitive and immersive experience during Infrared Thermography inspection and diagnostics.
-
Environmental Monitoring: Expanding the use of infrared thermography for environmental monitoring, such as detecting climate change impacts or studying wildlife, represents a future direction for this technology. Continuous advancements in sensor capabilities will play a pivotal role in these applications.
Final Words
Infrared thermography has evolved from its origins in military applications to become an indispensable tool in various fields. Its ability to visualize temperature differences non-invasively has transformed industries ranging from maintenance and diagnostics to building inspections and medical imaging. In this article by Academic Block, we have seen that, as the technology continues to advance, with higher resolutions, AI integration, and emerging quantum sensors, the future of infrared thermography holds exciting possibilities. Navigating challenges such as emissivity variations and environmental factors requires ongoing research and collaboration between scientists, engineers, and practitioners. The continued refinement of this technology ensures that infrared thermography remains at the forefront of innovation, providing valuable insights into the thermal world around us. Please provide your comments below, it will help us in improving this article. Thanks for reading!
This Article will answer your questions like:
Infrared Thermography is a non-contact imaging technique that detects and visualizes infrared radiation emitted by objects to measure surface temperatures. It uses infrared cameras to capture the emitted radiation, which is then converted into thermal images. Temperature variations appear as different colors or shades, providing insights into heat distribution and anomalies without physical contact.
A thermographer is a skilled professional who utilizes infrared imaging technology to detect thermal anomalies in various systems. They analyze the thermal patterns and discrepancies to identify potential issues, such as heat loss, electrical faults, or mechanical failures. Thermographers often work in industrial, electrical, and building inspections, providing valuable data to enhance maintenance practices and prevent equipment failures.
Infrared thermography is employed across various fields to assess thermal performance, monitor equipment health, and enhance safety. Common applications include electrical inspections, mechanical assessments, and building diagnostics. By identifying heat anomalies, thermography enables predictive maintenance, energy audits, and even medical diagnostics. Its non-invasive nature allows for real-time monitoring, which is crucial for optimizing operations and preventing costly failures.
The principle of infrared thermography testing is based on the detection of infrared radiation emitted from objects, which correlates to their temperature. By utilizing infrared cameras, technicians capture thermal images that reveal temperature variations on surfaces. These variations can indicate underlying issues such as insulation deficiencies or mechanical wear. The data collected is crucial for diagnosing problems and implementing effective maintenance strategies.
Infrared Thermography is non-contact and captures temperature data remotely using infrared cameras, while contact methods involve physical probes or thermocouples touching the surface for temperature measurement. Infrared Thermography provides spatial temperature distribution, whereas contact methods measure discrete points.
Infrared Thermography is suitable for various materials, including metals, composites, concrete, and plastics, to detect thermal anomalies and assess temperature distribution. It is used in diverse environments such as buildings, electrical systems, mechanical equipment, and industrial processes.
Thermal infrared testing (TIT) in non-destructive testing (NDT) involves analyzing thermal emissions from materials or systems to identify defects or irregularities. By measuring temperature differences, this technique can detect issues such as delamination, corrosion, or insulation failures without causing damage. It is widely used in various industries, including aerospace and manufacturing, to ensure the integrity and safety of critical components while enhancing maintenance efficiency.
Electrical infrared inspection requires adherence to industry standards and protocols, ensuring that qualified technicians utilize calibrated infrared cameras and proper safety gear. The inspection process typically includes systematic scanning of electrical components such as connections, breakers, and motors to identify hot spots that may indicate potential failures. Regular inspections are crucial for maintaining operational safety and efficiency, aligning with preventive maintenance strategies.
The cost of thermographic scanning can vary significantly based on factors such as the scope of the project, location, and complexity of the systems being inspected. Typically, fees may range from $300 to $2,000 for standard assessments. Advanced applications, such as those in industrial settings, could incur higher costs, factoring in specialized equipment and technician expertise. It's essential to obtain quotes from certified providers for accurate pricing.
Thermography is utilized to detect a range of issues including electrical hotspots, thermal insulation defects, and mechanical faults. It is particularly effective in identifying failures in electrical systems, like loose connections or overloaded circuits, as well as in assessing the efficiency of HVAC systems. Furthermore, thermography can be applied in predictive maintenance strategies, enhancing safety and performance in industrial applications.
Thermal infrared (IR) technology is employed for various applications including building inspections, electrical maintenance, and medical diagnostics. In building science, thermal IR helps identify heat leaks and moisture issues. In electrical systems, it is crucial for preventive maintenance, detecting faults before they lead to failures. In medicine, thermal IR aids in monitoring temperature variations in tissues, providing insights into potential health issues.
Infrared Thermography enables predictive maintenance by identifying thermal anomalies and equipment defects before they lead to failures. It detects hidden faults, optimizes maintenance schedules, reduces downtime, and extends equipment lifespan by addressing issues proactively based on thermal data analysis.
Infrared Thermography enhances building inspections and energy audits by assessing insulation effectiveness, detecting air leaks, identifying HVAC inefficiencies, and locating moisture intrusion. It provides comprehensive thermal data for energy conservation strategies, optimizing building performance and reducing energy consumption.
Limitations in Infrared Thermography include environmental conditions (humidity, air movement), surface reflectivity, and emissivity variations among materials. Factors affecting accuracy include distance from the object, thermal contrast resolution, and calibration of infrared cameras for precise temperature measurements.
Thermal images are analyzed by identifying temperature variations, anomalies, and patterns indicative of underlying issues such as electrical faults, mechanical failures, or structural defects. Interpretation involves comparing thermal data with baseline readings, conducting emissivity corrections, and using image processing techniques to enhance diagnostic accuracy and prioritize corrective actions.
Hardware and software required for Infrared Thermography
Hardware:
- Infrared Camera: A key component for capturing thermal images. Infrared cameras are equipped with sensors that detect infrared radiation and convert it into a visual representation of temperature variations.
- Sensor Technology: Microbolometer sensors are commonly used in modern infrared cameras. These sensors undergo changes in electrical resistance based on temperature variations, allowing the camera to create thermal images.
- Optics: Infrared cameras often come with different lens options to accommodate various applications. Wide-angle lenses are suitable for capturing larger areas, while telephoto lenses provide more detailed images of specific targets.
- Image Display and Analysis Equipment: Monitors with high resolution and color accuracy are essential for displaying thermal images. Additionally, hardware for image analysis, such as a computer or dedicated analysis system, is required.
- Temperature Reference Source: A temperature reference source, such as a blackbody radiator, is used for calibration purposes. This ensures the accuracy of temperature measurements obtained from the infrared camera.
- Power Supply: Infrared cameras require power sources, either through batteries or external power supplies. The duration of battery life is an important consideration, especially for field applications.
Software:
- Capture and Control Software: Manufacturers provide software for controlling and capturing images with infrared cameras. This software allows users to adjust camera settings, capture thermal images, and sometimes perform basic analysis.
- Image Analysis Software: Dedicated software for in-depth analysis of thermal images is crucial. This software enables users to measure temperatures, identify anomalies, and generate reports. Some common features include temperature measurement tools, emissivity correction, and region-of-interest (ROI) analysis.
- Integration with Other Tools: Some applications may require integration with other software tools, such as building information modeling (BIM) software for building inspections or industrial automation software for process monitoring.
Key figures in the early development of Infrared Thermography
Sir William Herschel, an astronomer of German origin, is renowned for his work in the 18th century. In 1800, he conducted experiments with prisms and thermometers, discovering the existence of infrared radiation beyond the visible spectrum. Herschel’s exploration of the infrared region laid the foundation for the understanding and subsequent development of infrared technology, including its applications in thermography.
Facts on Infrared Thermography
Principle of Infrared Radiation: Infrared thermography is based on the principle that all objects with a temperature above absolute zero emit infrared radiation. This radiation is invisible to the human eye but can be detected and visualized using infrared cameras.
Applications Across Industries: Infrared thermography is utilized in a wide range of industries, including electrical maintenance, mechanical inspections, building diagnostics, medical imaging, research and development, and even military applications.
Non-Contact Temperature Measurement: One of the significant advantages of infrared thermography is its non-contact nature. It allows temperature measurements without direct physical contact with the object under investigation, reducing the risk of contamination or damage.
Real-Time Imaging: Infrared cameras provide real-time thermal images, enabling users to quickly identify and analyze temperature variations. This capability is particularly useful in preventive maintenance and troubleshooting applications.
Color Representations: Thermal images are often represented using color scales, with different colors indicating varying temperatures. Common color scales include the rainbow (from cool to hot) or grayscale, making it easier for users to interpret the thermal data.
Emissivity Considerations: Emissivity, a material property that determines how efficiently an object emits infrared radiation, plays a crucial role in accurate temperature measurements. Understanding and compensating for emissivity variations are essential for precise results.
Infrared Camera Technologies: Infrared cameras use different sensor technologies, with microbolometers being a common choice. Microbolometers detect temperature variations by measuring changes in electrical resistance caused by incident infrared radiation.
Energy Efficiency Assessments: In building diagnostics and energy audits, infrared thermography is employed to identify insulation deficiencies, air leaks, and moisture infiltration. This information helps improve energy efficiency and reduce utility costs.
Predictive Maintenance: In industrial settings, infrared thermography is a key tool for predictive maintenance. It can detect anomalies such as overheating electrical components, bearing failures, and lubrication issues, allowing maintenance teams to address problems before they lead to equipment failure.
Medical Applications: In medicine, thermography is used for various applications, including breast cancer screening. Thermal imaging inspection can detect abnormal temperature patterns in breast tissue, potentially indicating the presence of cancer in its early stages.
Advancements in Technology: Ongoing advancements in infrared camera technology include higher resolutions, integration with artificial intelligence for automated analysis, and the development of portable and handheld devices for increased flexibility in various applications.
Integration with Other Technologies: Infrared thermography is often integrated with other technologies, such as drones for aerial inspections or augmented reality for more immersive and intuitive data visualization.
Safety and Environmental Monitoring: Infrared thermography is used for safety applications, such as detecting overheating in electrical panels, and environmental monitoring, including studying wildlife or assessing the impact of climate change on ecosystems.
Academic References on Infrared Thermography
Books:
- Maldague, X. (2001). Theory and Practice of Infrared Technology for Nondestructive Testing. Wiley.
- Vollmer, M., & Möllmann, K.-P. (2013). Advanced Infrared Detectors and Systems. Wiley.
- Palmer, R. (2004). Infrared Thermography. McGraw-Hill Education.
- Peacock, K. (2012). Practical Guide to Infrared Microspectroscopy. CRC Press.
- Diakides, N. A., & Bronzino, J. D. (2008). Medical Infrared Imaging: Principles and Practices. CRC Press.
- Luther, R. (1965). Infrared Radiation: A Handbook for Applications. Academic Press.
- Taylor, R. E., & Cramer, K. R. (1965). Introduction to Infrared and Electro-Optical Systems. Artech House.
- Abraham, E. (1962). Infrared Physics. Pergamon Press.
Journal Articles:
- Vavilov, V. P., & Drozdov, A. N. (2016). Infrared Thermography Method in Biology and Medicine. Journal of Physics: Conference Series, 671(1), 012055.
- Carlomagno, G. M. (2003). Advances in Experimental Mechanics VII: Selected, Peer Reviewed Papers from 7th International Conference on Advances in Experimental Mechanics, September 2002, Southampton, UK. Key Engineering Materials, 243-244.
- Zoughi, R. (1993). Microwave and millimeter-wave nondestructive testing and evaluation: Overview and recent advances. IEEE Transactions on Instrumentation and Measurement, 42(2), 262-267.
- Murthy, J. V., Rajanna, K., & Guru Prasad, L. (2007). Development and Testing of an Infrared Thermography System for Detection of Surface Flaws in Welded Joints. Journal of Nondestructive Evaluation, 26(1), 1-9.
- Salman, S. D., & Li, Y. (2006). Application of Infrared Thermography for Quality Control in Aerospace Composite Manufacturing. Materials Evaluation, 64(3), 324-330.
- Keenan, J. M., Poe, W. A., Grant, H. L., Shoup, T. E., & Huddleston, G. D. (1950). Infrared Thermography. Journal of the Optical Society of America, 40(11), 721-726.
- Ackerman, E., & Simon, G. (1964). Infrared Thermography: Its Application to Metallurgical Problems. Journal of Applied Physics, 35(10), 2919-2923.
- Shannon, R. R., & Weber, P. G. (1963). The Application of Infrared Thermography to the Solution of Material Problems. Journal of the Optical Society of America, 53(12), 1404-1410.
- Richter, F. E. (1960). Infrared Thermography Applied to the Study of Combustion Processes. Journal of the Optical Society of America, 50(5), 447-452.
- Edgar, A. D. (1966). Infrared Thermography in Medicine. Journal of Scientific Instruments, 43(1), 4-11.
