Gamma Ray Telescopes: Capturing the Cosmic Fireworks

The universe is a vast expanse filled with enigmatic phenomena that continue to captivate the imagination of scientists and enthusiasts alike. To comprehend the mysteries of the cosmos, astronomers employ a variety of instruments, one of the most powerful being gamma-ray telescopes. Gamma rays, the most energetic form of electromagnetic radiation, offer a unique window into the extreme environments and events occurring throughout the universe. This article by Academic Block aims to provide a detailed exploration of gamma-ray telescopes, their significance, technologies employed, and the groundbreaking discoveries they have facilitated.

I. Understanding Gamma Rays

Gamma rays are electromagnetic waves with the shortest wavelengths and highest energies in the electromagnetic spectrum. They are produced by some of the most violent and energetic processes in the universe, such as supernovae, pulsars, and black holes. Despite their significance, gamma rays cannot be observed with traditional optical telescopes due to the Earth’s atmosphere, which absorbs these high-energy photons. Hence, the need for specialized instruments arises, leading to the development of gamma-ray telescopes.

II. Historical Overview

The history of gamma-ray astronomy is relatively short compared to other branches of astronomy. The field took a significant leap forward with the launch of the Compton Gamma Ray Observatory (CGRO) by NASA in 1991. CGRO played a crucial role in advancing our understanding of gamma-ray sources, detecting a wide range of celestial phenomena, including gamma-ray bursts, pulsars, and active galactic nuclei.

III. Key Components of Gamma-Ray Telescopes

Gamma-ray telescopes are intricate instruments that incorporate several key components to detect and analyze gamma-ray emissions. The following are essential elements of a gamma-ray telescope:

a. Detection Mechanism: Gamma-ray telescopes use detectors to capture and record gamma-ray photons. Commonly employed detectors include scintillation detectors and solid-state detectors. Scintillation detectors utilize materials that emit flashes of light when struck by gamma rays, while solid-state detectors rely on semiconductor materials to convert gamma-ray energy into electrical signals.

b. Imaging System: Unlike optical telescopes that produce detailed images, gamma-ray telescopes often focus on the direction and intensity of gamma-ray sources. They utilize collimators and coded masks to determine the incoming direction of gamma rays and create gamma-ray maps of the sky.

c. Data Processing and Analysis: Gamma-ray data are typically complex and require sophisticated processing techniques. Signal processing algorithms are employed to distinguish gamma-ray signals from background noise, and advanced software is used for data analysis. The collaboration of astronomers, physicists, and computer scientists is crucial for interpreting the wealth of information obtained.

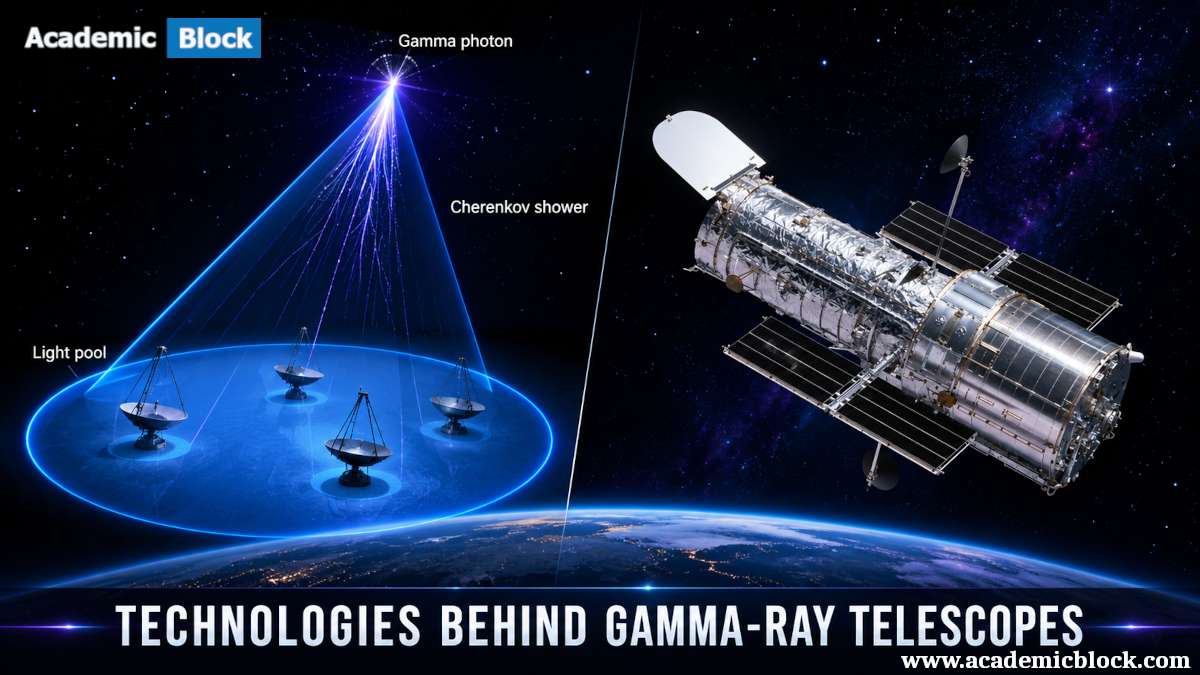

IV. Technologies Behind Gamma-Ray Telescopes

Advancements in technology have played a pivotal role in the evolution of gamma-ray telescopes. Several key technologies have contributed to the success and capabilities of these instruments:

a. Imaging Atmospheric Cherenkov Telescopes (IACTs): IACTs are ground-based telescopes designed to detect gamma rays indirectly through the observation of Cherenkov radiation. When gamma rays interact with the Earth’s atmosphere, they produce secondary particles that travel faster than the speed of light in air, emitting Cherenkov radiation. IACTs, such as the Very Energetic Radiation Imaging Telescope Array System (VERITAS) and the High Energy Stereoscopic System (HESS), capture this faint light to reconstruct the properties of the incident gamma rays.

b. Satellite-Based Telescopes: Space-based gamma-ray telescopes, like the Fermi Gamma-ray Space Telescope, operate above the Earth’s atmosphere, allowing them to observe a broader range of gamma-ray energies. Fermi employs the Large Area Telescope (LAT) and the Gamma-ray Burst Monitor (GBM) to survey the entire sky and detect gamma-ray bursts, pulsars, and other celestial sources.

V. Mathematical equations behind the Gamma Ray Telescopes

The mathematical equations behind the operation of gamma-ray telescopes involve principles of optics, statistics, and signal processing. Below are some key mathematical concepts and equations relevant to gamma-ray telescopes:

  1. Flux and Luminosity:

    • The flux (Φ) of gamma rays from a source is the amount of energy received per unit area per unit time. It is given by the equation:

      Φ = [ L / (4π D2 ) ] ;

      where L is the luminosity of the source and D is the distance from the source.

  2. Detection Rate:

    • The detection rate (R) of gamma-ray photons by a telescope is influenced by the effective area (Aeff) of the telescope and the flux of gamma rays. It is given by:

      R = Aeff × Φ ;

  3. Cherenkov Radiation:

    • In Imaging Atmospheric Cherenkov Telescopes (IACTs), the detection of gamma rays relies on the observation of Cherenkov radiation. The Cherenkov light emitted by relativistic charged particles in the atmosphere follows the angular distribution given by:

      N(θ) ∝ cos⁡2(θ) ;

  4. Signal-to-Noise Ratio (SNR):

    • The signal-to-noise ratio is a crucial parameter in any detection system. For gamma-ray telescopes, it can be expressed as:

      SNR = Signal / sqrt (Background)

  5. Point Spread Function (PSF):

    The PSF describes the response of a telescope to a point source. It is often modeled using a Gaussian distribution, and its width is a measure of the angular resolution of the telescope. The PSF can be represented mathematically as:

    PSF(θ) = [ 1 / 2πσ2 ] eZ ; where σ is the standard deviation and

    Z = (−θ2 / 2σ2

  6. Likelihood Analysis: The likelihood method is commonly used in gamma-ray astronomy to extract information about the source from observed data. It involves maximizing the likelihood function, which is the probability of obtaining the observed data given a set of model parameters.

  7. Source Localization: To determine the position of a gamma-ray source, statistical methods such as maximum likelihood estimation are employed. The likelihood function is maximized with respect to the source position parameters.

  8. Energy Reconstruction: The energy of detected gamma rays can be estimated using various techniques, such as the deconvolution of the energy dispersion function. The relationship between the measured and true energy is often modeled with a response function.

VI. Notable Gamma-Ray Telescopes

Several gamma-ray telescopes have significantly contributed to our understanding of the high-energy universe. A few noteworthy examples include:

a. Fermi Gamma-ray Space Telescope: Launched in 2008, Fermi has provided a wealth of data on gamma-ray sources, contributing to the identification of gamma-ray bursts, the study of active galactic nuclei, and the exploration of dark matter through indirect detection methods.

b. Chandra X-ray Observatory: While primarily an X-ray telescope, Chandra also observes gamma-ray emissions. Its ability to capture high-resolution X-ray images complements gamma-ray observations, allowing astronomers to study the interplay between different forms of electromagnetic radiation.

VII. Scientific Impact

Gamma-ray telescopes have transformed our understanding of the universe by revealing the extreme processes and environments that produce gamma-ray emissions. Some of the groundbreaking contributions include:

a. Gamma-Ray Bursts (GRBs): Gamma-ray telescopes played a pivotal role in the discovery and characterization of GRBs, brief but intense bursts of gamma-ray radiation. The origin of GRBs has been linked to various cosmic events, including supernovae and the merging of neutron stars.

b. Active Galactic Nuclei (AGN): The study of gamma-ray emissions from AGN has provided insights into the powerful processes occurring near supermassive black holes. Fermi has identified numerous gamma-ray-bright AGN, shedding light on the connection between black holes and their surrounding environments.

c. Dark Matter Searches: Gamma-ray telescopes contribute to the indirect search for dark matter by studying the high-energy gamma-ray emissions produced by hypothetical dark matter particles. The absence of certain gamma-ray signatures can provide constraints on dark matter properties.

VIII. Future Prospects

The field of gamma-ray astronomy continues to evolve, with ongoing and upcoming missions promising new discoveries. The Cherenkov Telescope Array (CTA), set to become the world’s largest gamma-ray observatory, will enhance our ability to explore the high-energy universe with unprecedented sensitivity and angular resolution.

IX. Challenges and Limitations

Despite their remarkable capabilities, gamma-ray telescopes face challenges such as background noise, instrumental limitations, and the difficulty of precisely pinpointing the origins of gamma-ray emissions. Overcoming these challenges requires ongoing advancements in technology and data analysis techniques.

Final Words

Gamma-ray telescopes stand at the forefront of astronomical exploration, providing unique insights into the most energetic processes occurring in the universe. From the detection of gamma-ray bursts to the study of active galactic nuclei, these instruments have expanded our understanding of the cosmos. In this article by Academic Block we have seen that, as the technology continues to advance and new observatories come online, the future holds the promise of even more remarkable discoveries, unraveling the remaining mysteries of the high-energy universe. Through the lens of gamma-ray telescopes, humanity continues its quest to unveil the secrets of the cosmos and comprehend the fundamental nature of the universe we call home. Please give your sugesstions below, it will help us in improving this article. Thanks for reading!

Academic References on Gamma Ray Telescopes


  1. Krawczynski, H. (2012). “High-Energy Astrophysics.” CRC Press.

  2. Aharonian, F. (2004). “Very High Energy Cosmic Gamma Radiation: A Crucial Window on the Extreme Universe.” World Scientific Publishing.

  3. Dermer, C. D. (2009). “High Energy Radiation from Black Holes: Gamma Rays, Cosmic Rays, and Neutrinos.” Princeton University Press.

  4. Weekes, T. C. (2003). “Very High Energy Gamma-Ray Astronomy.” Institute of Physics Publishing.

  5. Holder, J. (Ed.). (2012). “High-Energy Gamma-Ray Astronomy.” Springer.

  6. Williams, P. J. (2018). “Gamma-Ray Bursts: A Systematic Theoretical Introduction.” Cambridge University Press.

  7. Schlickeiser, R. (2002). “Cosmic Ray Astrophysics.” Springer.

  8. Tluczykont, M., & Vollhardt, A. (Eds.). (2014). “Gamma-Ray Astronomy: Nuclear Transition Region.” Springer.

Journal Articles:

  1. Atwood, W. B., et al. (2009). “The Large Area Telescope on the Fermi Gamma-ray Space Telescope Mission.” The Astrophysical Journal, 697(2), 1071-1102.

  2. Aharonian, F., et al. (2006). “Observations of the Crab Nebula with HESS.” The Astrophysical Journal, 636(2), 777-782.

  3. Acero, F., et al. (2015). “Fermi Large Area Telescope Third Source Catalog.” The Astrophysical Journal Supplement Series, 218(2), 23.

  4. Hinton, J. A., & Hofmann, W. (2009). “The First Imaging Atmospheric Cherenkov Telescope.” Annual Review of Astronomy and Astrophysics, 47, 523-565.

  5. Ackermann, M., et al. (2013). “The Spectrum of Isotropic Diffuse Gamma-Ray Emission Between 100 MeV and 820 GeV.” The Astrophysical Journal, 799(1), 86.

  6. Casandjian, J. M. (2019). “The Cherenkov Telescope Array, an Observatory for High-Energy Gamma Ray Astronomy.” Journal of High Energy Astrophysics, 21, 1-5.

Key figures Gamma Ray Telescopes

The development and advancement of gamma-ray telescopes have involved the collaborative efforts of numerous scientists and researchers over the years. However, it’s worth noting that the field of gamma-ray astronomy has been significantly influenced by the contributions of scientists such as Bruno Rossi and Riccardo Giacconi. Bruno Rossi, an Italian experimental physicist, made important contributions to the study of cosmic rays and high-energy astrophysics. Riccardo Giacconi, an Italian-American astrophysicist, was awarded the Nobel Prize in Physics in 2002 for his pioneering work on X-ray astronomy, which also laid the groundwork for the development of gamma-ray telescopes.

Gamma Ray Telescopes

Hardware and software required for Gamma Ray Telescopes


  1. Detector Systems:
    • Scintillation Detectors: These detectors use scintillating materials that emit light when gamma rays interact with them. Examples include Sodium Iodide (NaI) and CsI(Tl).
    • Solid-State Detectors: Semiconductor detectors, such as silicon or germanium detectors, are used to directly convert gamma-ray energy into electrical signals.
  2. Imaging System:
    • Collimators: Gamma-ray telescopes often use collimators to determine the direction of incoming gamma rays. Collimators restrict the field of view, allowing the telescope to focus on specific regions of the sky.
    • Coded Masks: In some cases, telescopes use coded masks to create gamma-ray images by modulating the incident radiation.
  3. Data Acquisition Systems:
    • Analog-to-Digital Converters (ADCs): These convert the analog signals from detectors into digital data for further processing.
    • Data Readout Electronics: Systems to read, digitize, and transmit data from detectors to onboard or ground-based computers.
  4. Telescope Structure:
    • Mirror Systems: In space-based telescopes, mirrors are used to focus gamma rays onto detectors. In ground-based Cherenkov telescopes, large reflective dishes collect Cherenkov light.
  5. Satellite or Ground-Based Platform:
    • Satellite Payload: For space-based telescopes like Fermi, the telescope is part of a larger satellite payload.
    • Observatory Infrastructure: Ground-based telescopes require a stable platform, often equipped with precise tracking systems.
  6. Calibration Systems:
    • Calibration Sources: Known gamma-ray sources or calibration systems to periodically check and calibrate the performance of the telescope.
  7. Computing Systems:
    • Onboard Computers: For space-based telescopes, onboard computers process and store data before transmission.
    • Ground-Based Computing Clusters: High-performance computing systems are essential for processing and analyzing the large volumes of data generated by gamma-ray telescopes.


  1. Data Processing and Analysis:
    • Event Reconstruction Software: Converts raw detector data into reconstructed gamma-ray events.
    • Image Reconstruction Software: Creates images or maps of the observed gamma-ray sources.
    • Signal Processing Algorithms: Identify gamma-ray signals, discriminate against background noise, and estimate energy.
  2. Telescope Control Software:
    • Pointing and Tracking Software: Ensures the telescope accurately points at celestial objects of interest.
    • Scheduling Software: Plans observations based on the position and characteristics of gamma-ray sources.
  3. Simulation Software:
    • Monte Carlo Simulations: Simulate the interaction of gamma rays with the telescope system to optimize design and understand instrument response.
  4. Data Archiving and Distribution:
    • Data Archive Systems: Store and organize observational data for long-term access and analysis.
    • Data Distribution Systems: Disseminate data to the scientific community and the public.
  5. Statistical Analysis Tools:
    • Likelihood Analysis Software: Used for extracting information about gamma-ray sources from observed data.
    • Statistical Modeling Tools: Employed for estimating parameters and uncertainties in the analysis.
  6. Visualization Tools:
    • Image and Spectral Visualization Software: Helps scientists visualize and interpret the results.
  7. Simulation and Modeling Tools:
    • Software for Simulating Gamma-Ray Sources: Assists in predicting expected observations for different astrophysical scenarios.

Facts on Gamma Ray Telescopes

Detection of High-Energy Photons: Gamma-ray telescopes are specifically designed to detect high-energy photons, known as gamma rays. These photons have energies greater than those of X-rays and are produced by some of the most energetic processes in the universe.

Inaccessible by Optical Telescopes: Gamma rays cannot be observed using traditional optical telescopes due to their extremely high energy. The Earth’s atmosphere absorbs gamma rays, necessitating the use of space-based or ground-based observatories at high altitudes.

Space-Based Telescopes: Several gamma-ray telescopes operate in space to avoid atmospheric absorption. Notable examples include the Fermi Gamma-ray Space Telescope, launched by NASA in 2008, and the Compton Gamma Ray Observatory, which operated from 1991 to 2000.

Ground-Based Telescopes: Ground-based gamma-ray telescopes, such as Imaging Atmospheric Cherenkov Telescopes (IACTs), use the Earth’s atmosphere to indirectly detect gamma rays. When gamma rays interact with the atmosphere, they produce Cherenkov radiation, which can be observed by these telescopes.

Imaging Atmospheric Cherenkov Telescopes (IACTs): IACTs, like the High Energy Stereoscopic System (HESS) and the Very Energetic Radiation Imaging Telescope Array System (VERITAS), observe brief flashes of Cherenkov light created when gamma rays interact with the Earth’s atmosphere. These telescopes create images of the gamma-ray sources.

Fermi Gamma-ray Space Telescope: Fermi is a space-based telescope that observes gamma rays in the energy range from 20 MeV to over 300 GeV. It has made significant contributions to the study of gamma-ray bursts, active galactic nuclei, and cosmic-ray interactions.

Gamma-Ray Bursts (GRBs): Gamma-ray telescopes have played a crucial role in the discovery and study of gamma-ray bursts (GRBs), which are brief, intense bursts of gamma-ray radiation associated with various astrophysical phenomena, including supernovae and neutron star mergers.

Active Galactic Nuclei (AGN): Gamma-ray telescopes have detected high-energy gamma-ray emissions from active galactic nuclei (AGN), providing insights into the processes occurring near supermassive black holes at the centers of galaxies.

Dark Matter Searches: Gamma-ray telescopes contribute to the indirect search for dark matter by looking for gamma-ray signals produced by the annihilation or decay of hypothetical dark matter particles. Observations help constrain the properties of dark matter.

Cherenkov Telescope Array (CTA): CTA, currently under construction, is set to be the next-generation ground-based gamma-ray observatory. It aims to improve sensitivity and energy resolution, offering a more comprehensive view of the gamma-ray sky.

High-Energy Astrophysics: Gamma-ray telescopes provide a unique tool for studying high-energy astrophysical phenomena, including pulsars, supernova remnants, and gamma-ray binaries, allowing scientists to explore extreme environments and understand fundamental astrophysical processes.

Multi-Messenger Astronomy: Gamma-ray observations, in conjunction with other types of telescopes and detectors, contribute to the emerging field of multi-messenger astronomy. Combining information from gamma rays, gravitational waves, and other messengers enhances our understanding of cosmic events.

Key Discoveries using Gamma Ray Telescopes

Gamma-ray telescopes have made significant contributions to our understanding of the universe by detecting and studying high-energy gamma-ray emissions. Some key discoveries using gamma-ray telescopes include:

  1. Discovery of Gamma-Ray Bursts (GRBs): Gamma-ray telescopes, particularly the Burst and Transient Source Experiment (BATSE) on the Compton Gamma Ray Observatory (CGRO) and later instruments like the Fermi Gamma-ray Space Telescope, have revolutionized the understanding of gamma-ray bursts. These brief and intense flashes of gamma rays, once mysterious, have been linked to cataclysmic events such as supernovae and the mergers of neutron stars.

  2. Identification of Pulsars: Gamma-ray telescopes have played a crucial role in the discovery and study of gamma-ray pulsars. Pulsars are rapidly rotating neutron stars that emit beams of radiation, including gamma rays, as they rotate. The detection of pulsars in the gamma-ray spectrum has provided insights into the extreme conditions near these compact objects.

  3. Mapping Supernova Remnants: Gamma-ray telescopes have been instrumental in mapping the gamma-ray emissions from supernova remnants. These remnants, created by the explosive deaths of massive stars, produce gamma rays through processes involving cosmic-ray acceleration and interactions with interstellar gas.

  4. Study of Active Galactic Nuclei (AGN): Gamma-ray telescopes have observed high-energy gamma-ray emissions from active galactic nuclei (AGN), the centers of distant galaxies hosting supermassive black holes. The detection of gamma rays from AGN has contributed to the understanding of the powerful processes occurring near these massive objects.

  5. Dark Matter Constraints: Gamma-ray telescopes contribute to the search for dark matter by studying the high-energy gamma-ray emissions associated with potential dark matter annihilation or decay. The absence or characteristics of certain gamma-ray signals can help constrain the properties of dark matter particles.

  6. Discovery of Gamma-Ray Binaries: The detection of gamma-ray emissions from binary systems, where a compact object such as a neutron star or black hole interacts with a companion star, has provided insights into the high-energy processes occurring in these systems.

  7. Observation of Extragalactic Gamma-Ray Sources: Gamma-ray telescopes have identified and characterized extragalactic gamma-ray sources, including distant galaxies and galaxy clusters. These observations contribute to our understanding of the distribution of cosmic-ray particles and the astrophysical processes in extragalactic environments.

  8. Verification of Cosmic-Ray Acceleration Mechanisms: Gamma-ray telescopes have helped verify and study cosmic-ray acceleration mechanisms by detecting gamma rays produced in interactions between cosmic-ray particles and matter or radiation fields.

  9. Detection of Gamma-Ray Emission from Solar Flares: Gamma-ray telescopes have observed gamma-ray emissions from solar flares, providing valuable information about the processes occurring in the Sun’s atmosphere during these energetic events.

  10. Contributions to Multi-Messenger Astronomy: Gamma-ray observations, in conjunction with other telescopes and detectors sensitive to different wavelengths and particles, contribute to multi-messenger astronomy. Combining information from gamma rays, gravitational waves, and other messengers enhances our understanding of astrophysical phenomena.
