Infrared Reflectance Microscopy: Shedding Light on Microscale Analysis

Infrared Reflectance Microscopy (IRM) represents a sophisticated and non-destructive analytical method that combines the principles of infrared spectroscopy with microscopic imaging. This technique enables researchers to investigate the chemical composition and structure of materials at the microscale, offering valuable insights into a wide range of samples, from biological tissues to advanced materials. This article by Academic Block delves into the principles, instrumentation, applications, and advancements in IRM, providing a comprehensive overview of its capabilities in various scientific fields. With a focus on both theoretical concepts and practical considerations, this article aims to elucidate the significance of IRM in modern research and its potential impact on diverse disciplines.

Principles of IRM

The fundamental principle of IRM lies in the interaction between infrared radiation and a sample. Infrared (IR) light, with wavelengths longer than visible light, interacts with the vibrational modes of molecular bonds in a sample. When infrared radiation strikes a sample, certain wavelengths are absorbed by the sample’s constituents, leading to changes in the vibrational energy levels of the molecular bonds. These changes are indicative of the chemical composition and structure of the sample.

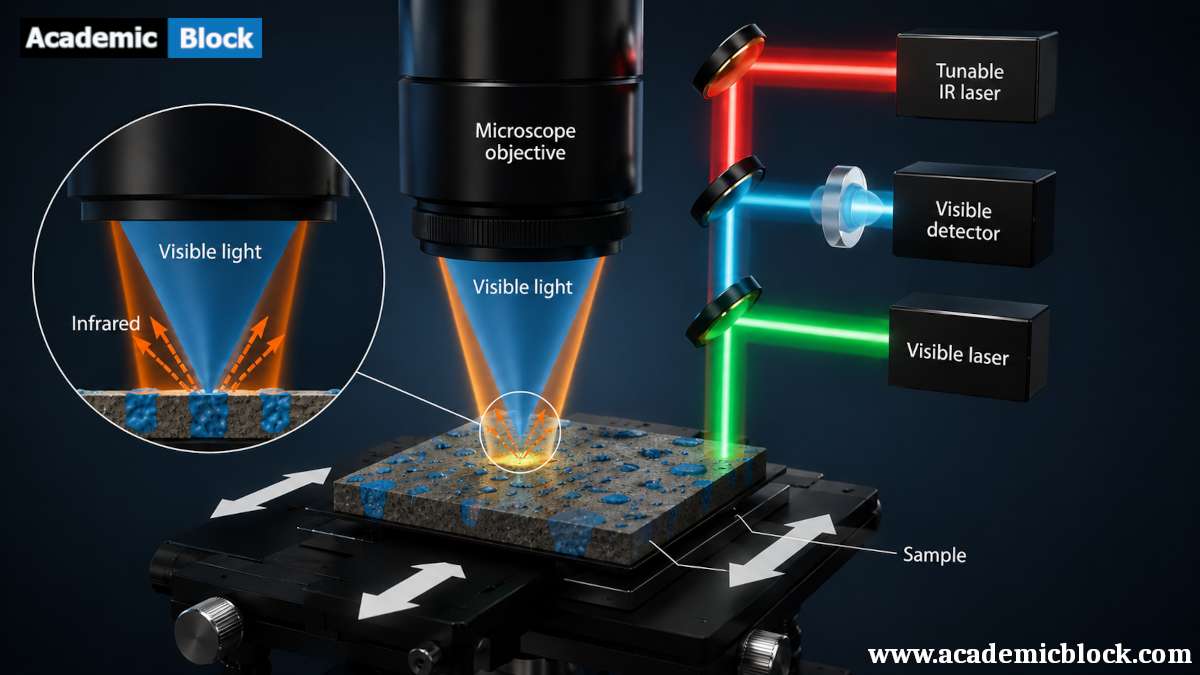

In IRM, a focused beam of infrared light is directed onto the sample, and the reflected light is collected and analyzed. The reflective properties of the sample provide information about its molecular composition, allowing for the identification of specific functional groups and chemical bonds. By coupling this with microscopy, researchers can obtain spatially resolved data, revealing detailed information about the distribution of chemical components within a sample.

Historical Development

The development of IRM can be traced back to the mid-20th century when infrared spectroscopy gained prominence as a powerful analytical technique. The integration of microscopy with infrared spectroscopy emerged as a natural progression, as researchers sought to combine the spatial resolution of microscopy with the chemical specificity of infrared spectroscopy.

Early attempts at infrared microscopy involved adapting conventional infrared spectrometers to accommodate microscopic samples. However, these systems faced limitations in terms of spatial resolution and sensitivity. The advent of Fourier-transform infrared (FT-IR) spectroscopy revolutionized the field, providing enhanced sensitivity and faster data acquisition. This paved the way for the development of modern IRM systems, which are now widely used in research laboratories and industrial settings.

Instrumentation for IRM

The successful application of IRM relies on sophisticated instrumentation capable of providing high spatial resolution and spectral accuracy. In this section, we will explore the key components of an IRM system and their roles in achieving reliable and detailed microscale analysis.

Light Source:

The choice of light source is crucial in IRM, as it directly influences the quality of the acquired spectra. Common light sources include globar sources, which emit a broad spectrum of infrared radiation, and synchrotron radiation sources, which offer high brightness and tunable wavelengths. The selection of the light source depends on the specific requirements of the experiment, such as the desired spectral range and resolution.

Microscope:

The microscope in an IRM system plays a pivotal role in providing high-resolution imaging of the sample. Several types of microscopes are employed in IRM, including transmission microscopes, reflection microscopes, and attenuated total reflection (ATR) microscopes.

  • Transmission Microscopes: These microscopes transmit the infrared beam through the sample, allowing for the analysis of thin sections or transparent samples. Transmission microscopes are suitable for biological samples and thin films.
  • Reflection Microscopes: Reflection microscopes, on the other hand, analyze the infrared radiation reflected from the sample surface. This configuration is advantageous for opaque samples, as it eliminates the need for sample preparation.
  • ATR Microscopes: ATR microscopes utilize the ATR technique, where the infrared beam is internally reflected at the sample interface. This approach is particularly useful for analyzing samples with irregular surfaces or those that cannot be easily prepared for transmission or reflection measurements.

Detector:

The detector is responsible for capturing the intensity of the infrared radiation after it interacts with the sample. Common detectors used in IRM include mercury cadmium telluride (MCT) detectors and pyroelectric detectors. MCT detectors offer high sensitivity and are suitable for a wide range of applications, while pyroelectric detectors are often employed in portable or field-based systems.

Sample Stage:

The sample stage is a critical component that holds the sample in place and allows for precise positioning during analysis. Motorized stages are often used to facilitate automated imaging and spectroscopy, enabling the collection of spatially resolved data across the sample.

Data Processing and Analysis:

The data acquired from an IRM experiment are typically in the form of hyperspectral datasets, consisting of both spatial and spectral information. Advanced data processing and analysis techniques are essential for extracting meaningful information from these datasets. Multivariate analysis methods, such as principal component analysis (PCA) and cluster analysis, are commonly employed to identify patterns and trends within the data, enabling the characterization of different regions within a sample.

Applications of IRM

IRM finds applications across a wide range of scientific disciplines, owing to its ability to provide detailed information about the chemical composition and structure of materials at the microscale. In this section, we will explore some key applications of IRM in fields such as materials science, life sciences, and forensics.

Materials Science:

In materials science, IRM is employed to study the composition and properties of diverse materials, including polymers, composites, and nanomaterials. The technique allows researchers to investigate the distribution of functional groups, defects, and impurities within a material. This information is crucial for understanding the structure-property relationships that govern the performance of materials in various applications.

One notable application is the analysis of polymer blends, where IRM can reveal the phase distribution and interfacial interactions between different polymer components. This insight is valuable for optimizing the processing and performance of polymer blends in applications ranging from packaging materials to biomedical devices.

Additionally, IRM is used to characterize thin films and coatings, providing information about layer thickness, composition, and uniformity. This is particularly important in industries such as electronics and optics, where the performance of thin-film devices depends on precise control over their composition and structure.

Life Sciences:

In the life sciences, IRM has proven to be a versatile tool for studying biological samples at the cellular and subcellular levels. Researchers use IRM to investigate the composition of tissues, cells, and biomolecules, gaining insights into physiological processes, disease mechanisms, and drug interactions.

One significant application of IRM in the life sciences is in the study of cancer tissues. IRM can differentiate between healthy and cancerous tissues based on their molecular profiles, enabling the identification of biomarkers associated with specific types of cancer. This information is crucial for early diagnosis, treatment planning, and understanding the molecular basis of cancer progression.

Moreover, IRM is employed in pharmaceutical research to study drug formulations and interactions at the microscale. Researchers can use IRM to track the distribution of drugs within cells and tissues, providing valuable information for drug development and formulation optimization.

Forensics:

IRM has found practical applications in forensic science, where the analysis of trace evidence and crime scene investigations requires high-resolution imaging and chemical characterization. Forensic analysts use IRM to examine microscopic samples such as fibers, hair, and bodily fluids, aiding in the identification and comparison of materials.

One key application in forensic science is the analysis of ink samples. IRM can provide information about the chemical composition of inks, helping to establish the origin of handwritten or printed documents. This is particularly important in cases involving questioned documents, where the authenticity of a document is under investigation.

Additionally, IRM is utilized in the analysis of gunshot residue, enabling forensic experts to identify and characterize microscopic particles associated with the discharge of firearms. This information can contribute to the reconstruction of crime scenes and the determination of shooting distances.

Mathematical equations behind the Infrared Reflectance Microscopy

In Infrared Reflectance Microscopy (IRM), the mathematical equations involved are primarily related to the principles of infrared spectroscopy and the reflection of infrared radiation from a sample’s surface. Here, we’ll discuss some of the fundamental equations associated with IRM:

1. Reflectance Equation:

The basic equation for reflectance (R) in IR spectroscopy is given by the Fresnel equation, which describes the reflection of light at an interface between two media:

R = [ (n1 − n2) / (n1 + n2) ]2 ;

Where:

  • R is the reflectance,
  • n1 is the refractive index of the medium from which the light is coming,
  • n2 is the refractive index of the medium into which the light is entering.

2. Kubelka-Munk Theory:

The Kubelka-Munk theory is commonly used in IRM for the analysis of diffuse reflectance spectra, particularly when dealing with powdered or granular samples. The Kubelka-Munk equation expresses the relationship between absorption (A) and scattering (S) in terms of the sample’s reflectance (R):

R = [ (1 − R)2 / 2R ] ⋅ [1 / (K/S) ] ;

Where:

  • R is the reflectance,
  • R is the reflectance of the infinitely thick sample,
  • K/S is the absorption-to-scattering ratio.

This equation is particularly useful in the quantitative analysis of samples where absorption and scattering contributions need to be separated.

3. Beer-Lambert Law:

The Beer-Lambert Law is a fundamental equation in spectroscopy, including infrared spectroscopy. It relates the absorbance (A) of a sample to its concentration (c), the molar absorptivity (ε), and the path length (l) of the sample:

A = ε⋅c⋅l ;

Where:

  • A is the absorbance,
  • ε is the molar absorptivity,
  • c is the concentration of the absorbing species,
  • l is the path length of the sample.

4. Imaging Equations:

In IRM, when dealing with microscopy, additional imaging-related equations come into play. These equations involve the optics of the microscope, including magnification (M), numerical aperture (NA), and the wavelength of the incident light (λ).

Spatial Resolution = (0.61⋅λ) / NA ;

This equation relates the spatial resolution of the microscope to the wavelength of the incident light and the numerical aperture of the optics.

5. Hyperspectral Imaging:

In hyperspectral imaging, where both spatial and spectral information are acquired, the data are often represented as a data cube. The intensity (I) at each pixel is a function of both spatial coordinates (x,y) and spectral wavelength (λ).

I(x,y,λ)

This data cube is then subjected to various data analysis techniques, such as principal component analysis (PCA) or multivariate curve resolution (MCR), to extract meaningful information.

These equations provide a foundation for understanding the principles behind Infrared Reflectance Microscopy, from the basic reflection at the sample’s surface to more advanced concepts related to quantitative analysis and hyperspectral imaging. The specific application and interpretation of these equations may vary depending on the experimental setup and the nature of the sample under investigation.

Advancements in IRM Technology

Over the years, IRM technology has witnessed significant advancements, driven by the demand for higher sensitivity, improved spatial resolution, and enhanced data acquisition speed. In this section, we will explore some of the recent developments and innovations in IRM instrumentation and methodologies.

Super-Resolution IRM: Super-resolution techniques have been applied to IRM to surpass the diffraction limit and achieve resolutions beyond what is conventionally possible. By employing methods such as stimulated emission depletion (STED) microscopy and photoactivated localization microscopy (PALM), researchers can achieve spatial resolutions on the order of tens of nanometers. These advancements are particularly valuable for studying cellular structures and nanomaterials with unprecedented detail.

Hyperspectral Imaging: Hyperspectral imaging in IRM involves acquiring a spectrum at each pixel of an image, resulting in three-dimensional datasets that include both spatial and spectral information. This approach allows for the simultaneous characterization of multiple chemical components within a sample. Advancements in hyperspectral imaging technology have improved data acquisition speed and sensitivity, making it a powerful tool for mapping complex samples with high precision.

Quantum Cascade Lasers: The integration of quantum cascade lasers (QCLs) into IRM systems has expanded the range of accessible wavelengths, enabling researchers to target specific molecular vibrations with greater precision. QCLs offer tunable, high-power infrared radiation, enhancing the sensitivity and selectivity of IRM measurements. This capability is particularly advantageous in applications where specific chemical bonds or functional groups need to be targeted for analysis.

Infrared Nanospectroscopy: Infrared nanospectroscopy has emerged as a cutting-edge technique that combines IRM with atomic force microscopy (AFM) or scanning probe microscopy (SPM) to achieve nanoscale spatial resolution. This allows researchers to investigate the chemical composition of materials at the nanoscale, opening up new possibilities for studying heterogeneous samples and nanostructured materials.

Challenges and Future Perspectives

While IRM has made significant strides in terms of sensitivity, spatial resolution, and versatility, several challenges remain that researchers are actively addressing. Some of the key challenges include:

Sample Preparation: The preparation of samples for IRM can be a time-consuming and delicate process, particularly in biological and medical applications. Developing methods for analyzing samples in their native state without extensive preparation is an ongoing challenge, as it would facilitate more realistic and representative measurements.

Signal-to-Noise Ratio: Achieving high signal-to-noise ratios is crucial for obtaining reliable and accurate IRM data. Advances in detector technologies, signal processing algorithms, and light sources are continually being explored to enhance signal sensitivity and reduce noise, especially in low-concentration or weakly absorbing samples.

Data Analysis Complexity: The complexity of hyperspectral datasets poses challenges in terms of data analysis and interpretation. Developing user-friendly and efficient data analysis tools, including machine learning algorithms, is essential to harness the full potential of IRM and extract meaningful information from large and complex datasets.

Looking ahead, the future of IRM holds promising opportunities for further innovation and integration with other complementary techniques. Collaborations between researchers from different disciplines, such as physics, chemistry, and biology, will likely contribute to the development of new methodologies and applications for IRM.

Final Words

In this article by Academic Block we have seen that, the Infrared Reflectance Microscopy has evolved into a versatile and indispensable tool for researchers across various scientific disciplines. Its ability to provide detailed chemical information at the microscale has opened new avenues in materials science, life sciences, and forensic science. With advancements in instrumentation, such as super-resolution techniques, hyperspectral imaging, and the incorporation of quantum cascade lasers, IRM continues to push the boundaries of what is possible in microscale analysis.

As technology continues to advance, the challenges associated with sample preparation, signal-to-noise ratio, and data analysis complexity are being actively addressed. The future of IRM holds exciting possibilities, including further improvements in spatial resolution, increased sensitivity, and the development of novel applications. As researchers continue to unravel the mysteries at the microscale, Infrared Reflectance Microscopy remains a beacon of light in the realm of analytical techniques, shedding light on the intricate details of the microscopic world. Please give your comments below, thanks for reading!

Hardware and software required for Infrared Reflectance Microscopy

Hardware:

  1. Infrared Microscope: A microscope equipped with infrared optics is the core hardware for IRM. Different types of microscopes, such as transmission, reflection, or attenuated total reflection (ATR) microscopes, may be used based on the nature of the samples.

  2. Infrared Source: A reliable and stable infrared light source is essential for generating the incident radiation. Common sources include globar sources or synchrotron radiation for research-grade instruments.

  3. Detector: Infrared detectors are crucial for capturing the reflected infrared radiation from the sample. Common detectors include mercury cadmium telluride (MCT) detectors, pyroelectric detectors, or other specialized infrared detectors.

  4. Sample Stage: A motorized sample stage allows for precise positioning and movement of the sample under the microscope. This is particularly important for mapping and imaging applications.

  5. Beam Splitter: A beam splitter separates the incident and reflected beams, directing the reflected radiation towards the detector for analysis.

  6. Data Acquisition System: A system for collecting and digitizing the raw data obtained from the detector.

  7. Computing System: A high-performance computer system to handle the computational requirements for data processing and analysis.

  8. Accessories: Depending on the specific technique, accessories such as ATR crystals, sample holders, and other specialized components may be required.

Software:

  1. Spectroscopy Control Software: Software for controlling the parameters of the spectroscopy system, including the choice of wavelength range, resolution, and data acquisition settings.

  2. Microscope Control Software: Software that allows users to control the microscope’s movements, focus, and other parameters. This may be integrated with the spectroscopy control software or provided as a separate interface.

  3. Data Analysis Software: Specialized software for processing and analyzing the collected data. This may include spectral analysis tools, chemometric methods, and visualization tools for interpreting hyperspectral data.

  4. Imaging Software: For IRM applications involving imaging, software for visualizing and processing microscopic images is crucial. This includes tools for spatial mapping and overlaying spectral information onto images.

  5. Database Management System: In research environments with large datasets, a database management system may be used to organize and retrieve IRM data efficiently.

  6. Calibration Software: Software for calibrating the instrument, correcting for instrument-specific variations, and ensuring the accuracy and reproducibility of measurements.

  7. Instrument Control Interface: An interface that allows users to interact with and control the various components of the IRM system. This may include adjusting microscope settings, selecting measurement modes, and monitoring system status.

  8. Report Generation Software: Software for generating comprehensive reports summarizing the results of IRM experiments. This may include annotated spectra, images, and any relevant statistical analyses.

Facts on Infrared Reflectance Microscopy

Principles of Interaction: IRM is based on the interaction of infrared (IR) radiation with the vibrational modes of molecular bonds in a sample. The reflected IR radiation provides information about the chemical composition and structure of the material.

Microscale Analysis: IRM allows for the examination of materials at the microscale, providing detailed insights into the chemical composition and spatial distribution of components within a sample.

Reflectance vs. Transmission: Unlike traditional infrared spectroscopy, which often involves transmission measurements, IRM focuses on analyzing the reflected infrared radiation from the surface of a sample. This makes it suitable for opaque and non-transparent materials.

Microscope Configurations: Different microscope configurations, such as reflection microscopes and attenuated total reflection (ATR) microscopes, are used in IRM. These configurations cater to various sample types and experimental requirements.

FT-IR Integration: Fourier-transform infrared (FT-IR) spectroscopy is commonly integrated with IRM systems. This allows for faster data acquisition and improved signal-to-noise ratios, enhancing the overall performance of the technique.

Chemical Imaging: IRM can be combined with imaging techniques, enabling the acquisition of chemical images. This is particularly useful for studying heterogeneous samples and visualizing the distribution of chemical components.

Quantitative Analysis: IRM can be employed for quantitative analysis by applying principles such as the Beer-Lambert Law. This allows researchers to relate the intensity of the reflected IR radiation to the concentration of specific components in a sample.

Hyperspectral Data: IRM often generates hyperspectral datasets, which contain both spatial and spectral information. This wealth of data enables comprehensive analysis and characterization of complex samples.

Materials Science Applications: IRM is extensively used in materials science for studying polymers, composites, thin films, and other materials. It provides valuable information about the distribution of functional groups and defects within these materials.

Biomedical Applications: In the field of biomedicine, IRM is employed for studying biological tissues, cellular structures, and pharmaceuticals. It aids in understanding disease mechanisms, drug interactions, and cellular processes.

Forensic Analysis: IRM is utilized in forensic science for analyzing trace evidence, such as inks and gunshot residues. It assists forensic experts in the identification and comparison of materials for investigative purposes.

Cultural Heritage Conservation: IRM plays a role in the conservation of artworks and cultural artifacts by providing insights into the molecular composition of pigments, binders, and coatings.

Super-Resolution Techniques: Advanced super-resolution techniques, such as stimulated emission depletion (STED) microscopy, can be integrated with IRM to achieve spatial resolutions beyond the diffraction limit.

Quantum Cascade Lasers: The integration of quantum cascade lasers (QCLs) in IRM systems allows for tunable and high-power infrared radiation, enhancing sensitivity and selectivity in measurements.

Environmental Analysis: IRM is employed in environmental science for analyzing particulate matter and contaminants, contributing to studies on air and water quality.
