Marvels of Ultrasound Imaging: A Comprehensive Exploration
Overview
Ultrasound imaging, also known as sonography, has revolutionized the field of medical diagnostics and imaging. This non-invasive and versatile technique utilizes high-frequency sound waves to create real-time visualizations of internal structures within the human body. Since its inception, ultrasound imaging has become an indispensable tool in various medical specialties, ranging from obstetrics and gynecology to cardiology and musculoskeletal imaging. This article by Academic Block will explore the principles, technology, applications, and advancements in ultrasound imaging, shedding light on its evolution and its crucial role in modern healthcare.
Principles of Ultrasound Imaging
At the core of ultrasound imaging is the principle of sound wave propagation. Ultrasound waves are high-frequency sound waves with frequencies above the upper limit of human hearing, typically in the range of 2 to 20 megahertz (MHz). The process begins with a transducer, a device that both emits and receives ultrasound waves. When the transducer is placed on the skin, it emits pulses of ultrasound waves that travel through the body.
As these waves encounter different tissues with varying acoustic properties, such as density and elasticity, some of the waves are reflected back to the transducer, while others are transmitted deeper into the body. The reflected waves are then detected by the transducer and converted into electrical signals. These signals are processed by a computer to generate real-time images that provide valuable information about the internal structures and conditions of the examined area.
The Ultrasound Machine

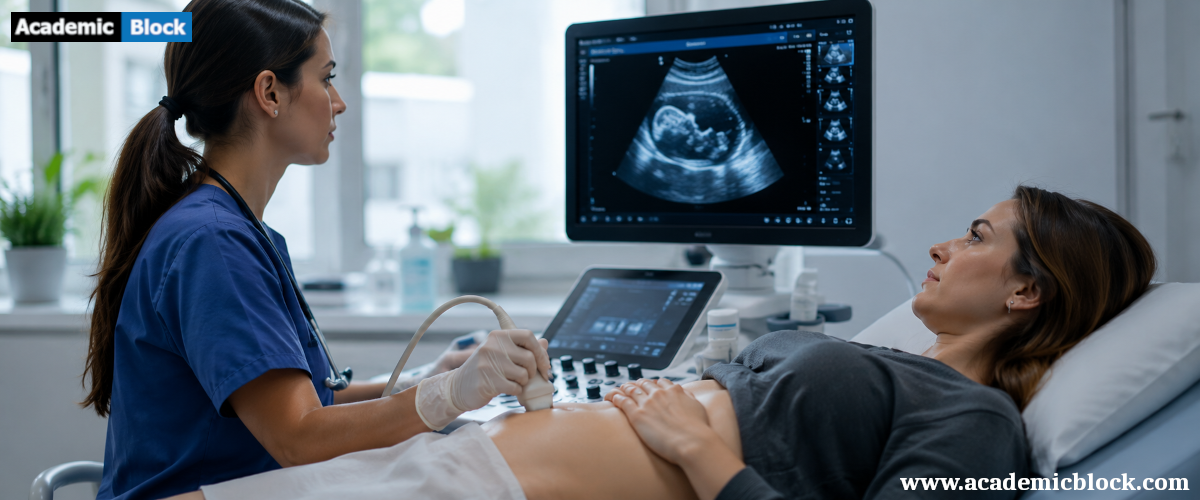

The ultrasound machine is a sophisticated device that plays a pivotal role in the imaging process. It consists of several key components, including:
Transducer: As mentioned earlier, the transducer is the crucial component that emits and receives ultrasound waves. It comes in various shapes and sizes, depending on the specific application and the area of the body being examined.
Probe or Wand: The transducer is often attached to a handheld probe or wand, allowing the healthcare professional to manipulate and position it accurately on the patient’s skin.
Pulse Controls: These controls manage the frequency and duration of the ultrasound pulses emitted by the transducer. Adjusting these parameters enables imaging at different depths and resolutions.
Display Screen: The real-time images produced by the ultrasound machine are displayed on a monitor, allowing the healthcare provider to interpret and analyze the visual information.
Gel: A gel is applied to the patient’s skin before placing the transducer. This gel facilitates the transmission of ultrasound waves and ensures optimal contact between the transducer and the skin.
Applications of Ultrasound Imaging
Ultrasound imaging has a broad spectrum of applications across various medical specialties. Some of the key areas where ultrasound is commonly employed include:
Obstetrics and Gynecology: Ultrasound is extensively used for monitoring fetal development during pregnancy, assessing the health of the uterus and ovaries, and detecting conditions such as ovarian cysts and fibroids.
Cardiology: Echocardiography, a specialized form of ultrasound, is employed to visualize the heart’s structure and function. It aids in diagnosing heart diseases, assessing valve function, and evaluating blood flow.
Abdominal Imaging: Ultrasound is valuable for examining organs in the abdomen, such as the liver, kidneys, pancreas, and gallbladder. It helps identify abnormalities, such as tumors or cysts, and assists in guiding procedures like biopsies.
Musculoskeletal Imaging: Ultrasound is used to assess soft tissues, muscles, tendons, and joints. It is particularly helpful in diagnosing injuries, inflammation, and conditions affecting the musculoskeletal system.
Vascular Imaging: Doppler ultrasound is employed to assess blood flow and detect abnormalities in the blood vessels. It plays a crucial role in diagnosing conditions like deep vein thrombosis (DVT) and peripheral artery disease.
Urology: Ultrasound is used to evaluate the kidneys, bladder, and prostate. It aids in detecting kidney stones, assessing the prostate for abnormalities, and guiding procedures such as prostate biopsies.
Mathematical equations behind the Ultrasound Imaging
The mathematical principles underlying ultrasound imaging involve the physics of sound waves and their interactions with tissues in the human body. The key equations are associated with the generation, propagation, reflection, and reception of ultrasound waves. Here are some fundamental equations that help explain the process of ultrasound imaging:
Wave Equation:
The basic wave equation describes the propagation of sound waves through a medium, such as human tissues. The equation is given by:
c = f λ ;
where:
c is the speed of sound in the medium,
f is the frequency of the ultrasound wave, and
λ is the wavelength of the ultrasound wave.
This equation shows the relationship between the speed, frequency, and wavelength of a sound wave.
Acoustic Impedance:
Acoustic impedance (Z) is a property that characterizes how easily a material can transmit sound waves. It is given by the product of the density (ρ) of the material and the speed of sound (c) in that material:
Z = ρ⋅c ;
This parameter is crucial for understanding the reflection and transmission of ultrasound waves as they encounter different tissues with varying acoustic impedances.
Reflection Coefficient:
The reflection coefficient (R) represents the proportion of ultrasound waves reflected at an interface between two tissues. It is determined by the difference in acoustic impedances between the two tissues. The formula for the reflection coefficient is:
R = (Z2 − Z1) / (Z2 + Z1) ;
where Z1 and Z2 are the acoustic impedances of the two tissues.
Transmission Coefficient:
The transmission coefficient (T) is the fraction of ultrasound waves that pass through an interface between two tissues. It is complementary to the reflection coefficient and can be calculated as:
T = 1 − R ;
The transmission coefficient is essential for understanding how ultrasound waves penetrate tissues.
Attenuation:
Ultrasound waves experience attenuation as they travel through tissues, which is a reduction in the intensity of the waves. The attenuation (A) can be described by the following equation:
I = I0 ⋅ e−2⋅α⋅d ;
where:
I is the intensity of the ultrasound wave after attenuation,
I0 is the initial intensity,
α is the attenuation coefficient, and
d is the distance the ultrasound wave has traveled through the tissue.
Doppler Effect:
In Doppler ultrasound, which is used to assess blood flow, the Doppler shift (fd) is related to the velocity (v) of the moving blood and the frequency (f) of the emitted ultrasound wave:
fd = 2 ⋅ f ⋅ (v / c) ;
where:
fd is the Doppler shift,
f is the frequency of the emitted ultrasound wave,
v is the velocity of the moving blood, and
c is the speed of sound in the tissue.
These equations provide a mathematical foundation for understanding the principles of ultrasound imaging, including the generation of ultrasound waves, their interaction with tissues, and the formation of images based on the detected echoes. The application of these mathematical concepts enables healthcare professionals to interpret ultrasound images and diagnose various medical conditions.
Advancements in Ultrasound Technology
Over the years, ultrasound technology has undergone significant advancements, contributing to enhanced imaging capabilities and improved diagnostic accuracy. Some notable developments include:
3D and 4D Imaging: Traditional ultrasound produces 2D images, but the advent of 3D and 4D (real-time 3D) imaging has added a new dimension to diagnostic capabilities. These technologies provide three-dimensional views of the scanned area, offering more detailed anatomical information.
Contrast-Enhanced Ultrasound (CEUS): CEUS involves the use of contrast agents to enhance the visibility of blood vessels and certain tissues during ultrasound imaging. This technique improves the detection and characterization of lesions and enhances the assessment of organ perfusion.
Elastography: Elastography is a technique that assesses tissue stiffness or elasticity. It is particularly useful in liver imaging, where it aids in diagnosing liver fibrosis and cirrhosis. Elastography is also applied in breast imaging for the characterization of breast lesions.
Portable Ultrasound Devices: The miniaturization of ultrasound technology has led to the development of portable and handheld ultrasound devices. These compact devices are increasingly being used in point-of-care settings, emergency medicine, and in resource-limited environments.
Fusion Imaging: Fusion imaging combines ultrasound with other imaging modalities, such as CT or MRI, to provide a comprehensive and detailed assessment of anatomical structures. This integrated approach enhances diagnostic accuracy and facilitates treatment planning.
Challenges and Considerations
While ultrasound imaging is a powerful diagnostic tool, it is not without limitations and challenges. Some considerations include:
Operator Dependency: The quality of ultrasound images can be influenced by the operator’s skill and experience. Adequate training is crucial to ensure accurate and reliable results.
Limited Penetration: Ultrasound waves have limitations in penetrating bone and air, making certain areas of the body less accessible for imaging. This can be a challenge in assessing structures behind bones or in the presence of excessive gas.
Image Quality: The resolution of ultrasound images may be compromised in certain situations, such as in obese patients or when imaging structures deep within the body. Advances in technology aim to address these challenges and improve overall image quality.
Biological Effects: While ultrasound is considered safe for diagnostic purposes, the long-term effects of repeated exposure to ultrasound waves are still under investigation. Research is ongoing to ensure that the benefits of ultrasound imaging outweigh any potential risks.
Future Directions and Innovations
As technology continues to advance, the future of ultrasound imaging holds exciting possibilities. Some areas of ongoing research and development include:
Artificial Intelligence (AI) Integration: AI algorithms are being developed to assist in the interpretation of ultrasound images. These algorithms have the potential to enhance diagnostic accuracy, automate image analysis, and improve efficiency in clinical workflows.
Functional Imaging: Research is underway to incorporate functional information into ultrasound imaging. This includes techniques such as perfusion imaging, which assesses blood flow, and molecular imaging, which targets specific molecules for diagnostic purposes.
Therapeutic Ultrasound: Beyond diagnostics, ultrasound is being explored for therapeutic applications. High-intensity focused ultrasound (HIFU) is a non-invasive technique used for targeted tissue ablation and is being investigated for treating conditions such as tumors.
Wireless Technology: Advancements in wireless technology may lead to the development of wireless ultrasound devices, providing greater flexibility in imaging and expanding the range of applications.
Final Words
Ultrasound imaging has come a long way since its introduction, evolving into a versatile and essential tool in the realm of medical diagnostics. Its non-invasive nature, real-time capabilities, and wide range of applications make it invaluable in various medical specialties. In this article by Academic Block, we have seen that, as technology continues to progress, ultrasound imaging is poised to further advance, offering even more sophisticated diagnostic capabilities and contributing to improved patient care. The ongoing integration of artificial intelligence, the exploration of therapeutic applications, and the refinement of imaging techniques ensure that ultrasound will remain a cornerstone of modern healthcare, playing a pivotal role in the diagnosis and management of a myriad of medical conditions. Please provide your comments below, it will help us in improving this article. Thanks for reading!
This Article will answer your questions like:
Ultrasound Imaging is a diagnostic technique that uses high-frequency sound waves to create images of internal body structures. The sound waves are emitted by a transducer, penetrate the body, and reflect back to the transducer from different tissues. These echoes are processed to form real-time images of organs and tissues.
Ultrasound waves are generated by piezoelectric crystals within a transducer. When an electric current is applied, these crystals vibrate and produce sound waves. These waves are transmitted into the body where they encounter different tissues, reflecting back to the transducer, which converts them into electrical signals for image formation.
The key principles of ultrasound involve wave propagation, impedance differences, and reflection. Ultrasound waves travel through the body and are partially reflected at tissue boundaries with different acoustic impedances. The time delay and amplitude of these echoes are used to construct detailed images of internal structures.
Ultrasound imaging differs from X-ray and MRI by using non-ionizing sound waves, offering real-time imaging without radiation exposure. Unlike MRI, which uses magnetic fields, and X-ray, which uses ionizing radiation, ultrasound is safer for frequent use, especially in obstetrics, and provides immediate feedback during procedures.
Ultrasound can visualize a variety of tissues and organs including the heart, liver, kidneys, gallbladder, spleen, pancreas, thyroid, and reproductive organs. It is particularly useful for imaging soft tissues and fluid-filled structures, making it ideal for detecting abnormalities in organs and guiding needle biopsies.
Doppler ultrasound measures blood flow and velocity by detecting frequency shifts in the reflected sound waves caused by moving red blood cells. This Doppler effect allows for the assessment of blood flow direction, speed, and volume, aiding in the diagnosis of vascular conditions and cardiac function.
Transducer technology is crucial in ultrasound imaging as it generates and receives sound waves. The transducer's design, including the frequency and array type, affects image resolution and depth. Advanced transducers offer higher frequencies for detailed imaging and specialized configurations for specific diagnostic applications.
In obstetrics and prenatal care, ultrasound is used to monitor fetal development, assess gestational age, detect congenital abnormalities, and evaluate placental position and amniotic fluid volume. It provides real-time images of the fetus, enabling non-invasive, safe, and detailed evaluation throughout pregnancy.
Ultrasound offers real-time imaging, allowing immediate visualization and assessment of structures and functions. This capability is essential for guiding interventions, monitoring physiological processes, and providing rapid diagnoses. Its portability, safety, and cost-effectiveness make it a versatile tool in various clinical settings.
Ultrasound-guided biopsy and therapy enhance precision in targeting lesions, minimizing damage to surrounding tissues. Real-time imaging allows for accurate needle placement, improving diagnostic yield and treatment efficacy. This approach is widely used in cancer diagnosis, drainage procedures, and minimally invasive treatments.
Ultrasound imaging is generally safe with no ionizing radiation involved. However, safety considerations include potential thermal and mechanical effects on tissues, particularly with prolonged exposure. Adhering to ALARA (As Low As Reasonably Achievable) principles and using appropriate settings minimizes any risks.
Radiologists interpret ultrasound images by assessing the echogenicity, structure, and morphology of tissues and organs. They identify abnormalities such as masses, fluid collections, and vascular changes. Reports include descriptive findings, diagnostic impressions, and recommendations for further evaluation or treatment.
Hardware and software required for Ultrasound Imaging
Hardware Components:
- Ultrasound Transducer: The transducer is a handheld device that emits and receives ultrasound waves. It is a crucial hardware component responsible for transmitting pulses and detecting the returning echoes. Transducers come in various types and frequencies depending on the imaging application.
- Ultrasound Machine: The ultrasound machine is the primary hardware used to generate and process ultrasound signals. It includes components such as a central processing unit (CPU), memory, and a monitor for displaying the images. Modern ultrasound machines may have additional features like 3D/4D imaging capabilities, Doppler ultrasound, and various imaging modes.
- Probe or Wand: The probe or wand is often an interchangeable component that connects to the transducer. It allows healthcare professionals to manipulate the transducer, directing it to specific areas of the body for imaging.
- Display Monitor: The display monitor is used to visualize the real-time ultrasound images. High-quality monitors are essential for accurate diagnosis and interpretation of the images.
- Peripheral Devices: Peripheral devices, such as printers and storage devices, are used to document and store ultrasound images for future reference. Some ultrasound machines also have built-in storage capabilities.
- Gel Dispenser: Ultrasound gel is applied to the patient’s skin to facilitate the transmission of ultrasound waves and improve the contact between the transducer and the skin. Gel dispensers are often integrated into the ultrasound machine or provided separately.
- Cart or Mobile Stand: Ultrasound machines are typically mounted on carts or mobile stands for portability and ease of movement within medical facilities. Portable ultrasound machines are also available for point-of-care applications.
Software Components:
- Ultrasound Imaging Software: This software is responsible for processing the signals received by the transducer and converting them into visual images. It includes algorithms for image formation, signal processing, and optimization of image quality.
- Doppler Imaging Software: For applications involving blood flow assessment, Doppler imaging software is used. It analyzes the Doppler shift in ultrasound signals caused by moving blood cells, providing information about blood velocity and direction.
- Post-Processing Software: Post-processing software allows healthcare professionals to manipulate and enhance ultrasound images after they have been acquired. This includes functions such as image cropping, measurements, and annotations.
- Image Archiving and Communication System (PACS): PACS is a system that enables the storage, retrieval, and distribution of medical images. It allows healthcare providers to access ultrasound images from different locations within a medical facility or remotely.
- DICOM (Digital Imaging and Communications in Medicine) Standard: DICOM is a standard for transmitting, storing, and sharing medical images. It ensures compatibility and interoperability between different imaging devices and software applications.
- Electronic Health Record (EHR) Integration: Integration with electronic health records allows ultrasound images and related patient information to be seamlessly incorporated into the patient’s medical record.
- Security and Encryption Software: Given the sensitive nature of medical imaging data, security and encryption software are crucial to protect patient privacy and comply with healthcare regulations.
- Calibration and Quality Assurance Software: Calibration software ensures that the ultrasound machine is producing accurate and reliable images. Quality assurance software helps monitor and maintain the performance of the ultrasound equipment over time.
Father of Ultrasound Imaging
The title of “father of ultrasound” is often attributed to Dr. Ian Donald, a Scottish obstetrician and gynecologist. Dr. Donald, along with his colleagues Tom Brown and John MacVicar, played a crucial role in the development and early applications of ultrasound imaging for medical purposes.
In the late 1950s and early 1960s, Dr. Donald and his team pioneered the use of ultrasound in obstetrics, leading to the first images of the fetus in the womb. Their work laid the foundation for the widespread adoption of ultrasound imaging in the field of obstetrics and, later, in various other medical specialties.
It’s important to note that while Dr. Ian Donald is often credited as a key figure in the development of medical ultrasound, the technology and its applications have evolved through the collaborative efforts of many researchers, engineers, and medical professionals over the years. The field continues to advance with ongoing research and innovations.
Facts on Ultrasound Imaging
Non-Invasive Nature: Ultrasound imaging is a non-invasive diagnostic technique, meaning it does not involve the use of needles, radiation, or surgery. This makes it a safer option for imaging certain populations, including pregnant women and infants.
High-Frequency Sound Waves: Ultrasound waves used in medical imaging typically have frequencies between 2 to 20 megahertz (MHz). The high frequency allows for detailed imaging of superficial and deep structures within the body.
Real-Time Imaging: One of the notable features of ultrasound is its ability to provide real-time imaging. This means that as the ultrasound transducer moves across the body, the images are generated instantaneously, allowing healthcare professionals to observe dynamic processes such as blood flow and fetal movement.
Dynamic Range: Ultrasound imaging has a wide dynamic range, capturing differences in tissue density and composition. This enables the visualization of various structures, from fluid-filled organs like the bladder to more dense structures like bones.
Applications in Obstetrics: Ultrasound is widely used in obstetrics for monitoring fetal development during pregnancy. It allows healthcare providers to assess the baby’s size, detect anomalies, and determine the baby’s position in the womb.
Guidance for Procedures: Ultrasound is often used to guide minimally invasive procedures, such as biopsies and injections. Real-time imaging helps healthcare professionals precisely target specific areas within the body.
Portable Ultrasound Devices: Advances in technology have led to the development of portable and handheld ultrasound devices. These compact devices are increasingly used in point-of-care settings, emergency medicine, and in remote or resource-limited environments.
Contrast-Enhanced Ultrasound (CEUS): Contrast agents can be used in ultrasound imaging to enhance the visibility of certain structures, such as blood vessels. Contrast-enhanced ultrasound (CEUS) is particularly useful for imaging the liver and assessing perfusion in different tissues.
Elastography: Elastography is a technique that measures tissue stiffness or elasticity. It has applications in liver imaging for the assessment of fibrosis and cirrhosis, as well as in breast imaging for characterizing lesions.
Limited Penetration Through Bone: Ultrasound waves have difficulty penetrating through bone and air, which can limit their effectiveness in imaging structures behind bones or in areas with excessive gas.
Doppler Ultrasound: Doppler ultrasound is employed to assess blood flow. It measures the Doppler shift in ultrasound waves caused by moving blood cells, providing valuable information about blood velocity and direction.
AI Integration: Artificial intelligence (AI) is increasingly being integrated into ultrasound imaging for tasks such as image analysis, pattern recognition, and automation of certain processes, potentially improving diagnostic accuracy and efficiency.
Therapeutic Ultrasound: High-intensity focused ultrasound (HIFU) is a therapeutic application of ultrasound that uses focused beams to heat and ablate tissue. It is being explored for the treatment of conditions such as tumors.
Cost-Effective Imaging: Ultrasound imaging is generally considered a cost-effective imaging modality compared to other techniques like CT scans or MRI. This contributes to its widespread use, especially in resource-constrained settings.
Ongoing Technological Advancements: The field of ultrasound imaging continues to evolve with ongoing technological advancements. Innovations include 3D/4D imaging, wireless technology, and the exploration of functional imaging techniques.
Academic References on Ultrasound Imaging
Books:
- Rumack, C. M., Wilson, S. R., & Charboneau, J. W. (2017). Diagnostic Ultrasound. Elsevier.
- Kremkau, F. W. (2015). Sonography Principles and Instruments. Elsevier.
- Thrall, J. H. (2018). Textbook of Veterinary Diagnostic Radiology. Elsevier.
- Gill, R. W. (2016). Ultrasound and Multifrequency Imaging. CRC Press.
- Taljanovic, M. S., Hunter, T. B., & Goodsitt, M. M. (2015). Ultrasound of the Musculoskeletal System. Lippincott Williams & Wilkins.
- Wells, P. N. T. (2006). Ultrasound in Medicine: A Review. Wiley.
- Hobbs, F. B. (2009). Introduction to Medical Imaging: Physics, Engineering, and Clinical Applications. Cambridge University Press.
- Zagzebski, J. A. (2013). Essentials of Ultrasound Physics. Mosby.
- Nyborg, W. L. (2001). Diagnostic Ultrasound: Principles, Instruments, and Exercises. Saunders.
- Sperling, J. W., & Kacmarek, R. M. (2015). Echocardiography for the Neonatologist. Springer.
Journal Articles:
- Shung, K. K. (2003). High Frequency Ultrasound Imaging. Journal of Medical Ultrasound, 11(1), 33-45.
- Cosgrove, D., & Harvey, C. (2019). Clinical Uses of Microbubbles in Diagnosis and Treatment. Medical Principles and Practice, 28(2), 101-115.
- Bamber, J., Cosgrove, D., & Dietrich, C. F. (2011). From Basic to Advanced Clinical Applications of Ultrasound. Ultrasound in Medicine & Biology, 37(10), 1479-1497.
- Wells, P. N. (2006). Ultrasonography in Medicine: A Review. Ultrasound in Medicine & Biology, 32(5), 597-609.
- Goldberg, B. B., & Liu, J. B. (2011). Ultrasound Contrast Agents: A Review. Ultrasound in Medicine & Biology, 37(12), 1852-1880.
