Surface Plasmon Resonance Imaging

Overview

Surface Plasmon Resonance (SPR) Imaging has emerged as a powerful technique for studying molecular interactions with high sensitivity and real-time monitoring capabilities. This innovative technology has found widespread applications in various fields, ranging from biochemistry to material science. In this article by Academic Block, we will explore the principles, instrumentation, and applications of Surface Plasmon Resonance Imaging, exploring its contributions to advancing our understanding of molecular interactions at the nanoscale.

Understanding Surface Plasmon Resonance

Plasmons: The Basics

To comprehend Surface Plasmon Resonance, one must first grasp the concept of plasmons. Plasmons are collective oscillations of electrons in a metal. When light interacts with a metal surface, it can induce a coherent oscillation of the free electrons, giving rise to plasmon resonances. The frequency at which these oscillations occur is highly sensitive to the properties of the surrounding medium.

SPR Phenomenon

Surface Plasmon Resonance occurs when incident light matches the frequency of plasmon oscillations at the metal-dielectric interface, leading to a dramatic increase in the absorption of light. This resonance condition is highly dependent on the refractive index of the adjacent medium, allowing SPR to serve as a sensitive probe for detecting changes in the immediate vicinity of the metal surface.

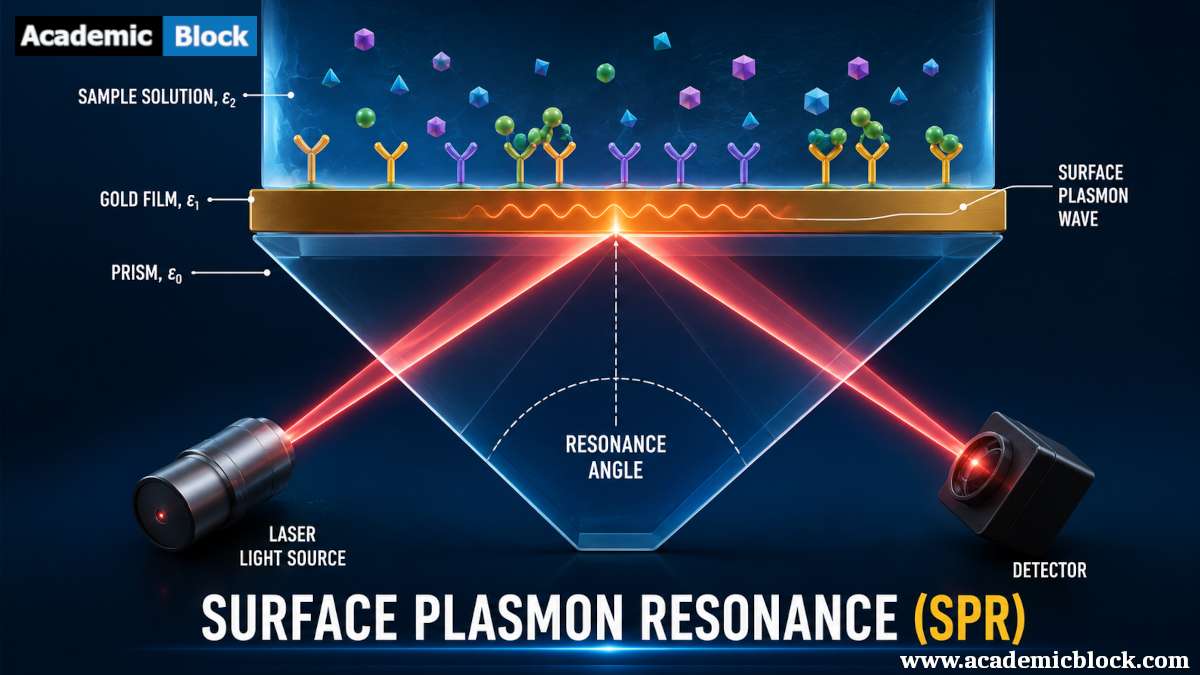

Instrumentation of SPR Imaging

Optical Setup: SPR Imaging instruments typically consist of a prism, a light source (commonly a laser), and a detector. The metal film, often gold or silver, is deposited on the prism surface, providing the platform for SPR to occur. The incident light undergoes total internal reflection within the prism, leading to the formation of an evanescent wave at the metal-dielectric interface.

Sensor Chip: The sensor chip, where the molecular interactions take place, is crucial for SPR Imaging. It is coated with a thin layer of metal and functionalized with molecules of interest. The binding of analytes to these molecules induces changes in the refractive index at the metal surface, leading to alterations in the SPR signal.

Real-Time Monitoring: One of the key advantages of SPR Imaging is its ability to provide real-time data on molecular interactions. As molecules bind or dissociate from the sensor surface, the SPR signal changes, allowing for dynamic monitoring of binding kinetics and affinity.

Sensitivity and Resolution: SPR Imaging offers exceptional sensitivity, capable of detecting molecular interactions at the picomolar level. Additionally, the technique provides high spatial resolution, enabling the investigation of interactions at the subcellular and even single-molecule level.

Applications of SPR Imaging

Biochemical Research: SPR Imaging has significantly impacted biochemical research by enabling the study of biomolecular interactions in real-time. It is widely employed in the analysis of protein-protein interactions, antigen-antibody binding, and the characterization of enzyme-substrate interactions. The ability to quantify binding kinetics and affinity has enhanced our understanding of various biological processes.

Drug Discovery: In the pharmaceutical industry, SPR Imaging plays a crucial role in drug discovery and development. Researchers use this technique to screen potential drug candidates, evaluate their binding affinities to target molecules, and assess the impact of small molecules on protein interactions. The real-time nature of SPR Imaging expedites the drug discovery process by providing rapid feedback on the effectiveness of potential therapeutics.

Material Science: Beyond its applications in the life sciences, SPR Imaging has found utility in material science. Researchers use SPR to investigate thin film properties, analyze the adsorption of molecules on surfaces, and study the interactions between materials and biological entities. This versatility has broadened the scope of SPR Imaging, making it a valuable tool in interdisciplinary research.

Environmental Monitoring: SPR Imaging is also employed for environmental monitoring and sensing. It can be utilized to detect pollutants, monitor water quality, and study the interactions between environmental samples and specific molecules. The high sensitivity of SPR Imaging makes it an attractive option for applications where precise detection of trace substances is essential.

Mathematical equations behind the Surface Plasmon Resonance Imaging

The mathematical description of Surface Plasmon Resonance (SPR) and Surface Plasmon Resonance Imaging (SPRi) involves several equations that capture the physics of light interacting with a metal surface and the changes in the optical properties due to molecular interactions. Here, we’ll outline some key equations associated with SPR and SPRi.

1. Dispersion Relation: The dispersion relation describes the relationship between the wave vector of the incident light and the surface plasmon wave vector. It’s given by:

kSP = ( ω / c ) sqrt [ εm / (εm + εd) ] ; where:

  • kSP is the surface plasmon wave vector,
  • ω is the angular frequency of the incident light,
  • c is the speed of light,
  • εm is the dielectric constant of the metal,
  • εd is the dielectric constant of the dielectric medium.

2. Angle of Resonance: The angle of resonance (θSPR) is the angle at which the surface plasmon resonance occurs. It is given by:

neff(λ) sin⁡(θSPR(λ)) = ( ω / c ) sqrt [ εm / (εm + εd) ] ; where:

  • neff is the effective refractive index of the dielectric medium.

3. Reflectivity Equation: The reflectivity of light at the metal-dielectric interface can be described using the Fresnel equations. For p-polarized light, the reflectivity (R) is given by:

R=∣ (r12 + r23 e2iϕ) / (1 + r12 r23 e2iϕ) ∣2 ;

where:

  • r12 is the amplitude reflection coefficient at the metal-dielectric interface,
  • r23 is the amplitude reflection coefficient at the dielectric-medium interface,
  • ϕ is the phase change upon reflection.

4. Change in Refractive Index: In the context of SPR imaging, the change in refractive index (Δn) due to molecular interactions is a critical parameter. This change is related to the shift in resonance angle (ΔθSPR) by the following equation:

Δn = [ tan⁡(θSPR) / L ] ΔθSPR ; where:

  • L is the penetration depth of the evanescent wave.

5. Binding Kinetics: In SPR imaging, the interaction between molecules on the sensor surface can be characterized using a binding kinetics model, often represented by the Langmuir equation:

θ(t) = θmax [ (ka c) / (1 + kac) ] eZ ; Z = − kdt ;

where:

  • θ(t) is the surface coverage at time tt,
  • θmax is the maximum surface coverage,
  • ka is the association rate constant,
  • kd is the dissociation rate constant,
  • c is the concentration of the analyte.

These equations provide a mathematical foundation for understanding and analyzing the principles behind SPR and SPR imaging. Researchers use them to interpret experimental data, determine binding kinetics, and optimize experimental conditions for specific applications.

Recent Advances in SPR Imaging

Integration with Microfluidics: Recent advancements in SPR Imaging involve the integration of microfluidic systems. Microfluidic devices coupled with SPR Imaging allow for controlled and continuous flow of analytes over the sensor surface, enhancing the efficiency of molecular interaction studies. This integration is particularly valuable for applications requiring minimal sample volumes.

Imaging in Complex Matrices: Traditional SPR techniques may face challenges when dealing with complex sample matrices, such as serum or whole blood. However, recent developments in SPR Imaging techniques have addressed these limitations, enabling the analysis of molecular interactions in complex biological samples. This is a significant step forward, as it aligns with the need to study interactions in environments that more closely resemble physiological conditions.

Single-Molecule SPR Imaging: Advancements in SPR Imaging have pushed the limits of sensitivity, allowing for the detection and monitoring of single molecules. This breakthrough opens up new avenues for studying molecular interactions at an unprecedented level of detail. Single-molecule SPR Imaging has the potential to unravel intricacies in binding kinetics and uncover nuances that might be masked in ensemble measurements.

Challenges and Future Directions

While SPR Imaging has made remarkable strides, certain challenges persist. The integration of SPR with other imaging modalities, such as fluorescence microscopy, is an area of ongoing research. Combining complementary techniques can provide a more comprehensive understanding of molecular interactions.

Another challenge lies in the development of more robust and versatile sensor surfaces. Improvements in surface functionalization strategies and the exploration of novel materials may further enhance the specificity and stability of SPR sensors.

As technology continues to evolve, the miniaturization of SPR Imaging devices and the development of portable systems are areas of active investigation. These advancements could democratize access to SPR technology, bringing its benefits to a broader range of researchers and industries.

Final Words

Surface Plasmon Resonance Imaging has revolutionized the study of molecular interactions, offering unparalleled sensitivity and real-time monitoring capabilities. From unraveling the intricacies of biochemical processes to advancing drug discovery and material science, SPR Imaging has left an indelible mark on diverse fields.

In this article by Academic Block we have seen that, as the technology continues to advance, the integration of SPR Imaging with other cutting-edge techniques and the exploration of new applications will undoubtedly propel this field further. The ongoing pursuit of higher sensitivity, spatial resolution, and versatility ensures that SPR Imaging will remain at the forefront of molecular interaction studies, pushing the boundaries of our understanding at the nanoscale. Please provide your comments below, it will help us in improving this article. Thanks for reading!
